Evaporation system from Leheng

Solutions by Industry

Case Studies for Industry Solutions

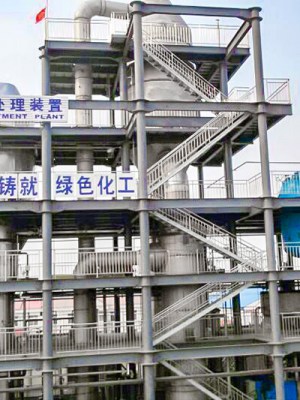

Case-2015-MVR-Evaporating-Crystallizer
  • Pharmaceutical
  • Crystallization

30T/h MVR Evaporation Crystallizer for Chemical Wastewater Treatment (ZLD)

30T/h MVR Evaporation Crystallizer for Chemical Wastewater Treatment (ZLD)

  • Energy Consumption
    Steam Price 200 RMB/T Working Time 8000 Hour/year
    Circulation Cooling Water l RMB/m³ Electrity Price 1 RMB/kW/h
    EquipmentMVR EvaporatorThree effect evaporator
    Centrifugal compressor 1300 KW/h 1300 RMB 0 KW/h 0 RMB
    Pump 450 KW/h 450 RMB 400 KW/h 400 RMB
    Steam To Preheat 0.5 T/h 100 RMB 12 T/h 12 RMB
    Cooling Water 50 T/h 50 RMB 400 T/h 400 RMB
    etc. 0   0 RMB 0   0 RMB
    Evaporation Cost/ Hour 1600 RMB 2840 RMB
    Evaporation Cost /Ton 53.3 RMB 94.6 RMB
    Annual Operation Cost 12800000 RMB 22720000 RMB
    Cost Saving/Ton 41.3 RMB
    Ratio of Economy Saving 43%
  • Location Tianjin
  • Date 2015-09-01
  • Country China
  • Application
  • Industry
  • Evaporation Rate 30T/h
  • Case Studies 1
  • Case Studies 15
  • Case Studies 11
Detail
  • Pharmaceutical

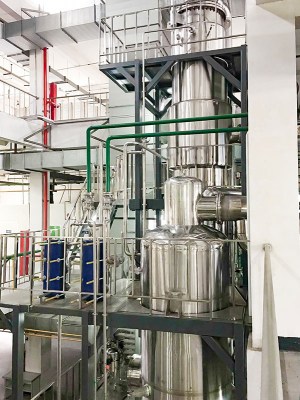

3T/h MVR Falling Film Evaporator for Ethanol Extract Concentrating

3T/h MVR Falling Film Evaporator for Ethanol Extract Concentrating

  • Case Studies 1
  • Case Studies 11
  • Energy Consumption
    Operation Hours (H/Y) 7200 Electricity Price (USD/KW.h) 0.12
    Steam Price (USD/T) 30 Cooling Water Price (USD/T) 0.015
    Item Multi-effect Evaporator MVR Evaporator
    Electricity (KW) 25 95
    Live Steam (T/H) 1.2 0.1
    Cooling Water (T/H) 120 20
    Operation Cost per Hour (USD) 40.8 14.7
    Cost of Evaporating one Ton of Water (USD) 13.6 4.9
    Savings per Hour (USD) 26.1
    Savings per Year (USD) 187,920.0
    Savings Rate per Year 64%
  • Location Jiangsu
  • Date 2015-11-01
  • Country China
  • Application
  • Industry
  • Evaporation Rate 3T/h
Detail

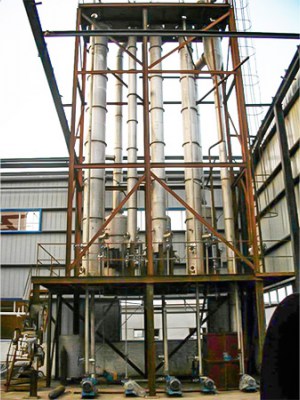

Corn-slurry-Evaporation
  • Food Service Industry

Corn Slurry Evaporation/Concentration

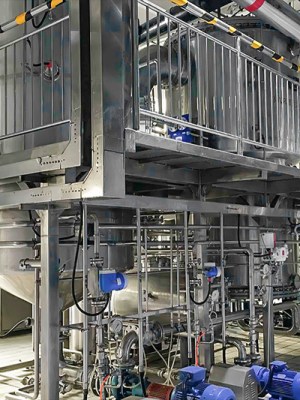

leheng-mvr-rising-film-evaporator4
  • Pharmaceutical

Donkey-hide gelatin production evaporator

Donkey-hide gelatin production evaporator

  • Location Shandong
  • Date 2016-03-05
  • Country China
  • Evaporation Rate 4 T/hr
  • Energy Consumption
    Steam Price 200RMB/T Working Time 8000Hours/year
    Circulation Cooling Water 1RMB/m³ Electrity Price 1RMB/Kw.h

    4T-MVR Evaporative Crystallization System Operating Cost

    EquipmentMVR EvaporatorDouble-Effect Evaporator
    Mechanical Compressor 100 KW/h 100 RMB 0 Kff/h 0 RMB
    Pump 24 KW/h 24 RMB 20 KW/h 20 RMB
    Steam To Preheat 0.05 T/h 15 RMB 2. 28 T/h 457 KMB
    Cooling Water 10 T/h 10 RMB 40 T/h 40 KMB
    etc. 0   0 RMB 0   0 RMB
    Evaporation Cost/ Hour 1-48 RMB 516 RMB
    Evaporation Cost /Ton 37 RMB 129 RMB
    Annual Operation Cost 1184000 RMB 4128000 RMB
    Cost Saving/Ton 92 RMB
    Ratio of Economy Saving 70%
  • Specification
    Evaporation Rate
    4T/h
    Feed Composition
    Gelatin liquid
    Input Feed Concentraiton
    7.76%
    Input Feed Density
    1.025g/L
    Outlet Feed Density
    1.050g/L
    Boiling Point Elevation
    2℃
    Temperature Rise
    10℃
    Evaporation temperature
    70℃
  • Case Studies 8
  • Case Studies 12
  • Full Case Download /download/casestudy/4T-Traditional-Chinese-Medicine-Concentration_Dong-E-E-Jiao.pdf
Detail

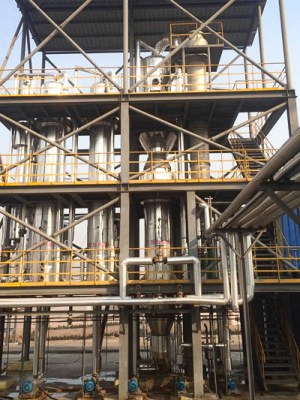

Fumaric-Acid-Evaporation-and-Crystallization
  • Crystallization
  • Chemical

Fumaric Acid Evaporation and Crystallization

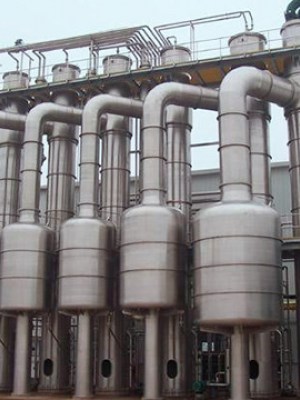

Glucose-evaporation
  • Pharmaceutical

Glucose Evaporation & Extraction

Hydrazine-hydrate-waste-water-treatment
  • Chemical
  • Wastewater Treatment

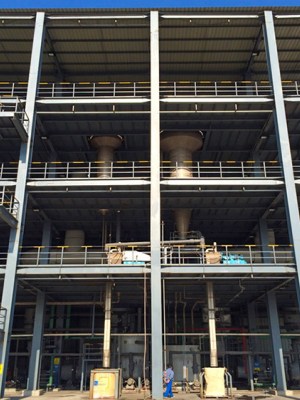

Hydrazine Hydrate Waste Water Treatment

syrup-evaporation-system-1
  • Food Service Industry

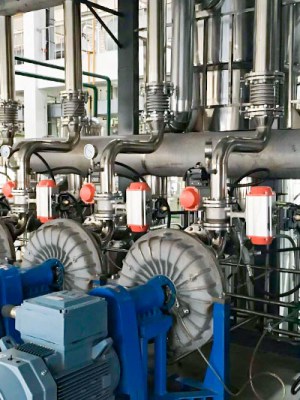

Syrup Evaporation System

Syrup Evaporation System

  • Location Shandong
  • Date 2017-03-10
  • Country China
  • Application
  • Industry
Detail
