30T/h MVR Evaporation Crystallizer for Chemical Wastewater Treatment (ZLD)

• Energy Consumption

  Steam Price	200		RMB/T		Working Time				8000		Hour/year
  Circulation Cooling Water	l		RMB/m³		Electrity Price				1		RMB/kW/h

  Equipment	MVR Evaporator				Three effect evaporator
  Centrifugal compressor	1300	KW/h	1300	RMB	0	KW/h	0	RMB
  Pump	450	KW/h	450	RMB	400	KW/h	400	RMB
  Steam To Preheat	0.5	T/h	100	RMB	12	T/h	12	RMB
  Cooling Water	50	T/h	50	RMB	400	T/h	400	RMB
  etc.	0		0	RMB	0		0	RMB
  Evaporation Cost/ Hour	1600			RMB	2840			RMB
  Evaporation Cost /Ton	53.3			RMB	94.6			RMB
  Annual Operation Cost	12800000			RMB	22720000			RMB
  Cost Saving/Ton	41.3							RMB
  Ratio of Economy Saving	43%

• Location Tianjin
• Date 2015-09-01
• Country China
• Application
• Industry
• Evaporation Rate 30T/h
• Case Studies 1
• Case Studies 15
• Case Studies 11

7.6T/h Sodium Chloride & Sodium Sulfate Wastewater Treatment System

• Case Studies 8
• Case Studies 15
• Case Studies 11
• Energy Consumption

  Operation Hours (H/Y)	7200	Electricity Price (USD/KW.h)		0.12
  Steam Price (USD/T)	30	Cooling Water Price (USD/T)		0.015

  Item	Multi-effect Evaporator		MVR Evaporator
  Electricity (KW)	72		447
  Live Steam (T/H)	3.2		0.2
  Cooling Water (T/H)	240		40
  Operation Cost per Hour (USD)	108.2		60.2
  Cost of Evaporating one Ton of Water (USD)	14.2		7.9
  Savings per Hour (USD)	48.0
  Savings per Year (USD)	345,600.0
  Savings Rate per Year	44%

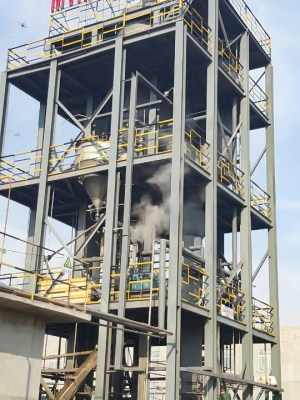

• Location Shandong
• Date 2015-12-01
• Country China
• Application
• Industry
• Evaporation Rate 7.6T/h
