7.6T/h Sodium Chloride & Sodium Sulfate Wastewater Treatment System

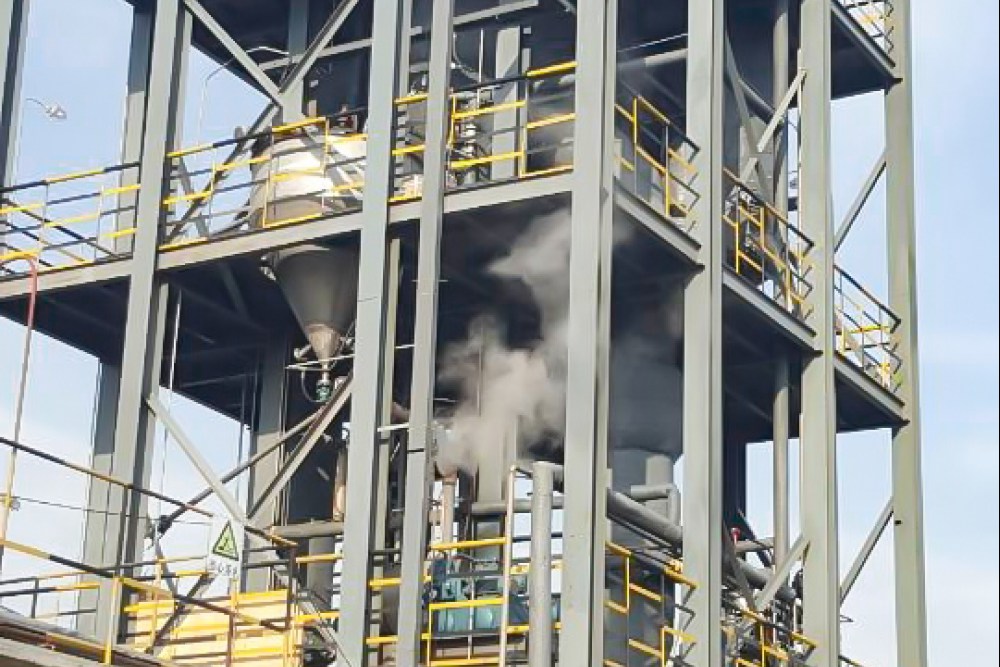

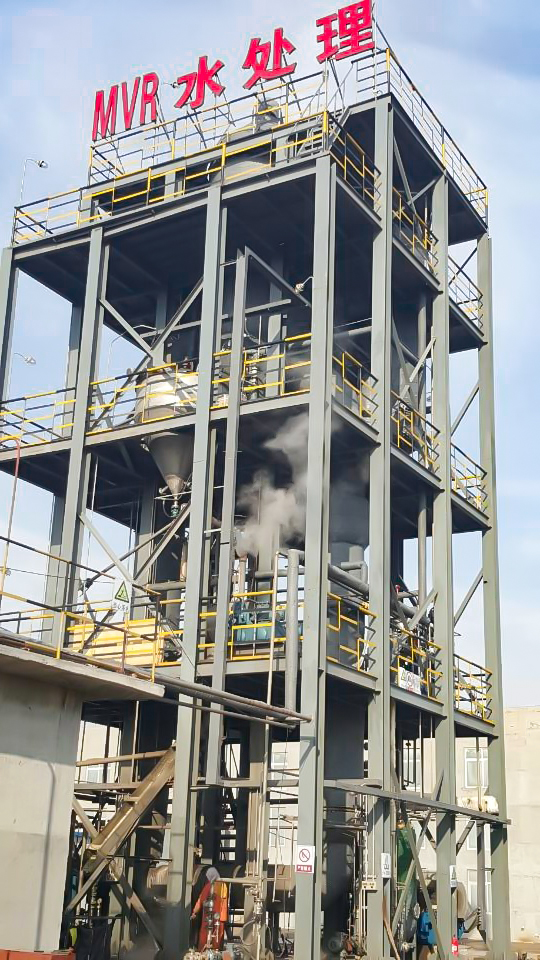

This wastewater treatment system is a combination of rising film evaporator and forced circulation evaporator to save energy, the wastewater is concentrated by the rising film evaporator, and then crystallized in the FC crystallizer.
Full description
Project Information
Location
Shandong
Date
01 December 2015
Country
China
Evaporation Rate
7.6T/h
Energy Consumption Analysis
| Operation Hours (H/Y) | 7200 | Electricity Price (USD/KW.h) | 0.12 | |
| Steam Price (USD/T) | 30 | Cooling Water Price (USD/T) | 0.015 | |
| Item | Multi-effect Evaporator | MVR Evaporator | ||
|---|---|---|---|---|
| Electricity (KW) | 72 | 447 | ||
| Live Steam (T/H) | 3.2 | 0.2 | ||
| Cooling Water (T/H) | 240 | 40 | ||
| Operation Cost per Hour (USD) | 108.2 | 60.2 | ||
| Cost of Evaporating one Ton of Water (USD) | 14.2 | 7.9 | ||
| Savings per Hour (USD) | 48.0 | |||
| Savings per Year (USD) | 345,600.0 | |||
| Savings Rate per Year | 44% | |||
